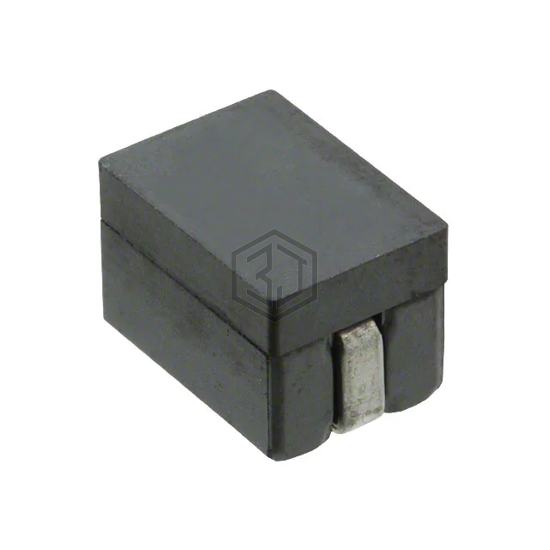

FIXED IND 150NH 25A 0.37MOHM SMD
744308015 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 150NH 25A 0.37MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 25 A.
In Stock: 2,352
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 150 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 25 A |
| Current - Saturation (Isat) | 58A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.37mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 60MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.276" W (10.10mm x 7.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
Submit your RFQ for 744308015 and get a quote within 24 hours.
