FIXED IND 250NH 25A 0.26MOHM SMD

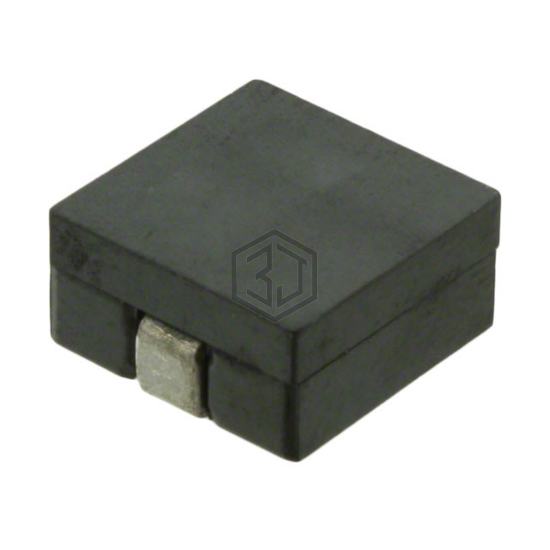

744306025 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 250NH 25A 0.26MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 25 A.
In Stock: 2,784
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 250 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 25 A |
| Current - Saturation (Isat) | 32A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.26mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 400MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.413" L x 0.406" W (10.50mm x 10.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
Submit your RFQ for 744306025 and get a quote within 24 hours.
