FIXED IND 400NH 26A 0.155MOHM SM

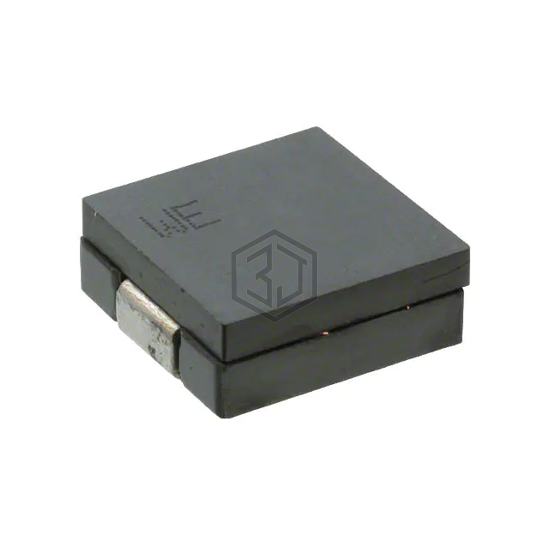

744305040 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 400NH 26A 0.155MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 26 A.
In Stock: 327
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 400 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 26 A |
| Current - Saturation (Isat) | 20A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.155mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 50MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.524" W (13.50mm x 13.30mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
Submit your RFQ for 744305040 and get a quote within 24 hours.
