FIXED IND 105NH 30A 0.235MOHM SM

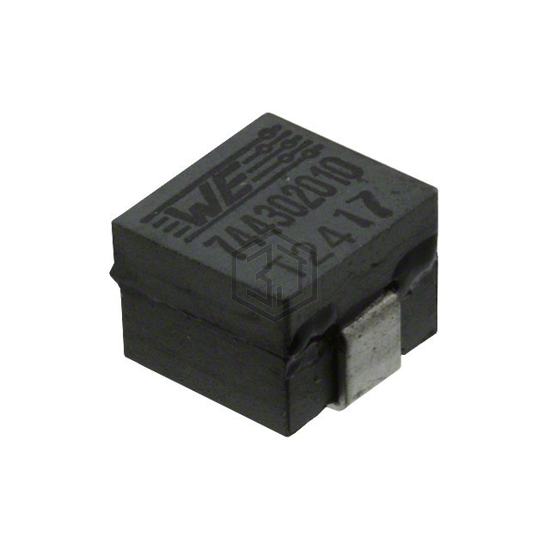

744302010 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 105NH 30A 0.235MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 30 A.
In Stock: 341
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 105 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 30 A |
| Current - Saturation (Isat) | 45A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.235mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 70MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.281" L x 0.276" W (7.15mm x 7.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for 744302010 and get a quote within 24 hours.
