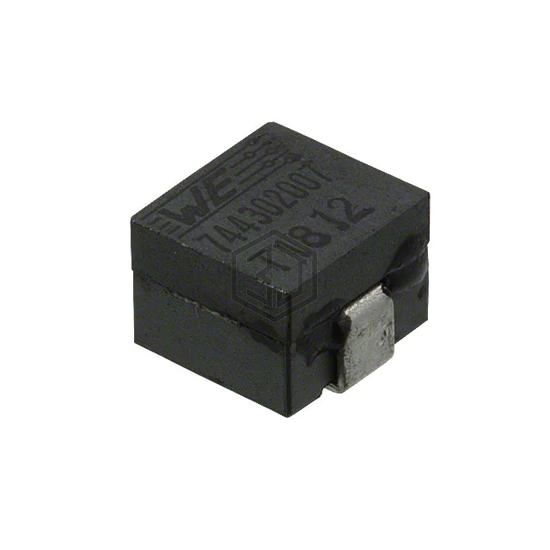

FIXED IND 72NH 30A 0.235MOHM SMD
744302007 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 72NH 30A 0.235MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 30 A.
In Stock: 587
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 72 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 30 A |
| Current - Saturation (Isat) | 60A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.235mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 150MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.281" L x 0.276" W (7.15mm x 7.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for 744302007 and get a quote within 24 hours.
