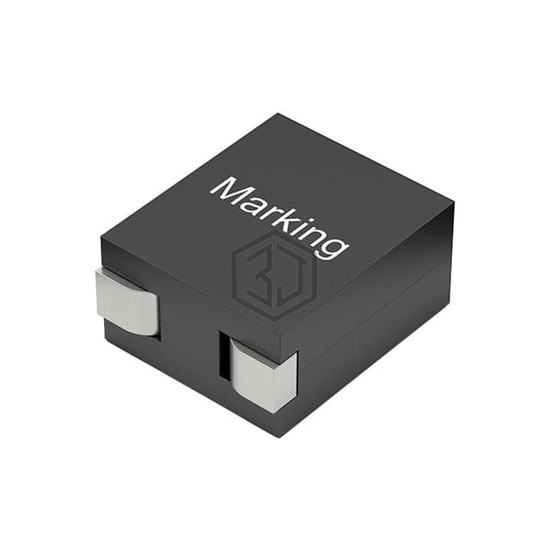

FIXED IND 220NH 37A 0.22MOHM SMD
744300022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 220NH 37A 0.22MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 37 A.
In Stock: 4,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Manganese Zinc Ferrite (MnZn) |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 37 A |
| Current - Saturation (Isat) | 19A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.22mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 38MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.340" L x 0.250" W (8.64mm x 6.35mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
