FIXED IND 82UH 7.7A 30 MOHM TH

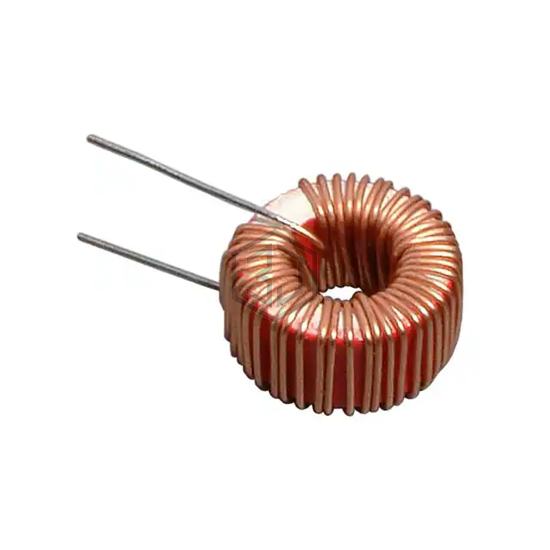

744152 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 82UH 7.7A 30 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case Radial, Vertical Cylinder (Open), current rating (amps) 7.7 A.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 82 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.7 A |
| Current - Saturation (Isat) | 1.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 30mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 5.4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.102" Dia x 0.472" W (28.00mm x 12.00mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 744152 and get a quote within 24 hours.
