FIXED IND 157UH 5.1A 63 MOHM TH

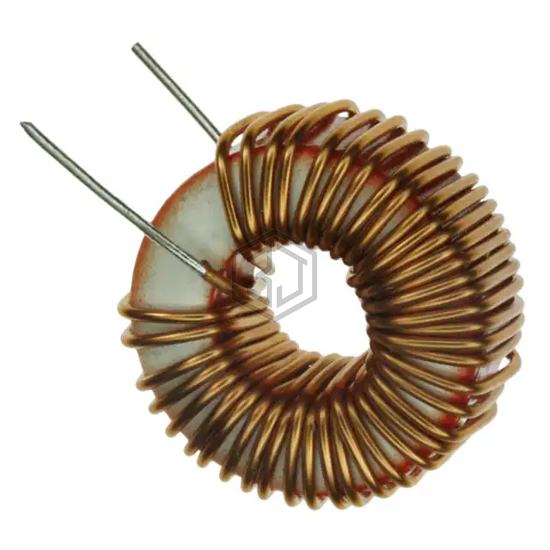

744135 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 157UH 5.1A 63 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case Radial, Vertical (Open), current rating (amps) 5.1 A.
In Stock: 97
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Ferrite |
| Inductance | 157 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.1 A |
| Current - Saturation (Isat) | 1.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 63mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.220" Dia x 0.531" W (31.00mm x 13.50mm) |
| Height - Seated (Max) | - |
