FIXED IND 127UH 2.3A 120 MOHM TH

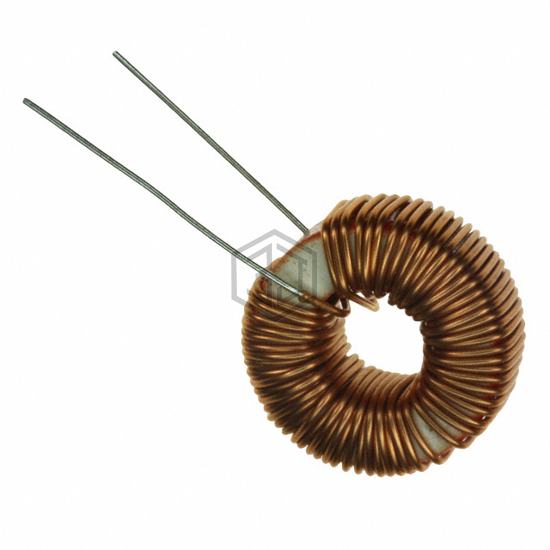

744114 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 127UH 2.3A 120 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case Radial, Vertical (Open), current rating (amps) 2.3 A.
In Stock: 314
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Ferrite |
| Inductance | 127 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.3 A |
| Current - Saturation (Isat) | 1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 4.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.709" Dia x 0.354" W (18.00mm x 9.00mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 744114 and get a quote within 24 hours.
