FIXED IND 1.619MH 1.8A 480 MOHM

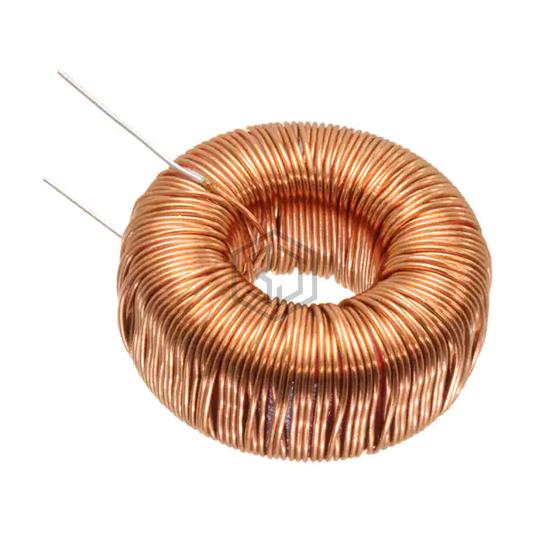

7441110 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1.619MH 1.8A 480 MOHM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case Radial, Vertical (Open), current rating (amps) 1.8 A.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 1.619 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 700mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 480mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 500kHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.181" Dia x 0.571" W (30.00mm x 14.50mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 7441110 and get a quote within 24 hours.
