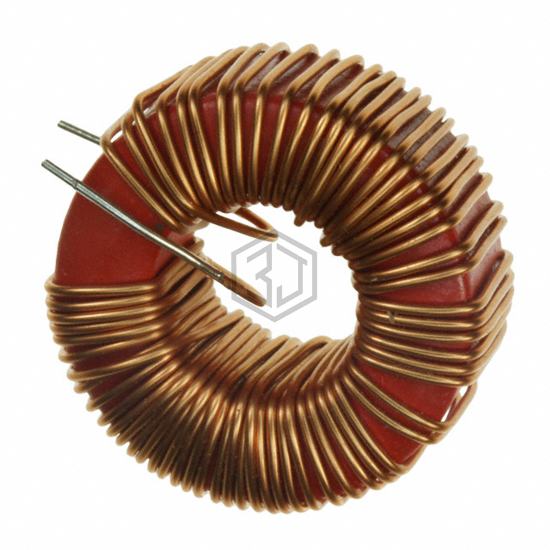

FIXED IND 109UH 1.3A 300 MOHM TH
744103 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 109UH 1.3A 300 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case Radial, Vertical (Open), current rating (amps) 1.3 A.
In Stock: 148
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Ferrite |
| Inductance | 109 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 300mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 9.2MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.591" Dia x 0.315" W (15.00mm x 8.00mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 744103 and get a quote within 24 hours.
