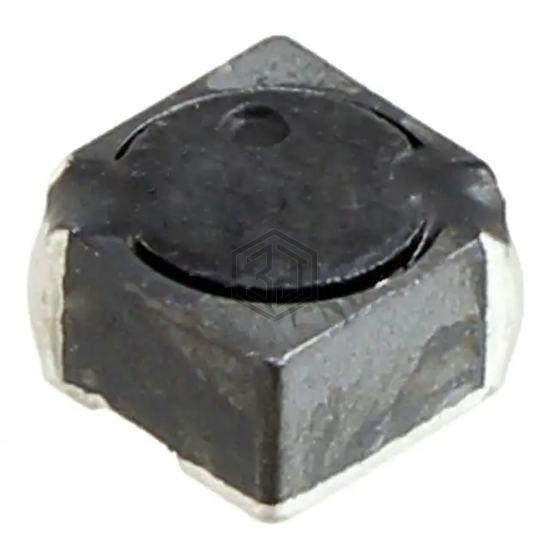

FIXED IND 220NH 5.3A 14.4MOHM SM
744089420022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 220NH 5.3A 14.4MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1919 (4848 Metric), current rating (amps) 5.3 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 5.3 A |
| Current - Saturation (Isat) | 13.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 220MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1919 (4848 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for 744089420022 and get a quote within 24 hours.
