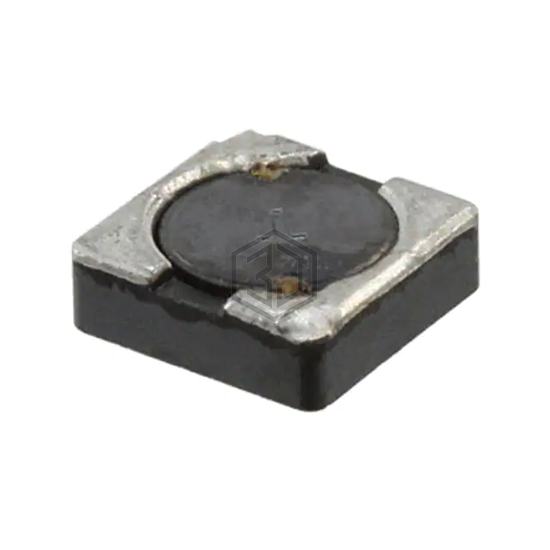

FIXED IND 1.5MH 80MA 8 OHM SMD
744062152 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1.5MH 80MA 8 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 2727 (6868 Metric), current rating (amps) 80 mA.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 mH |
| Tolerance | ±30% |
| Current Rating (Amps) | 80 mA |
| Current - Saturation (Isat) | 110mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 8Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2727 (6868 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.268" L x 0.268" W (6.80mm x 6.80mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
Submit your RFQ for 744062152 and get a quote within 24 hours.
