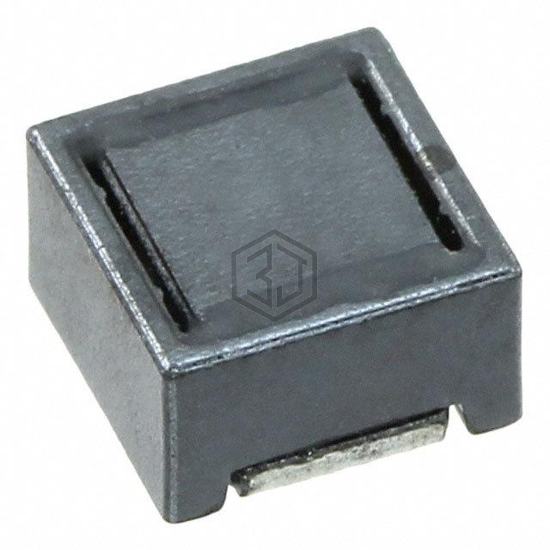

FIXED IND 1.5UH 2.25A 39MOHM SMD
74406032015 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1.5UH 2.25A 39MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.25 A.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.25 A |
| Current - Saturation (Isat) | 1.92A |
| Shielding | Shielded |
| DC Resistance (DCR) | 39mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 215MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 3818 |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
