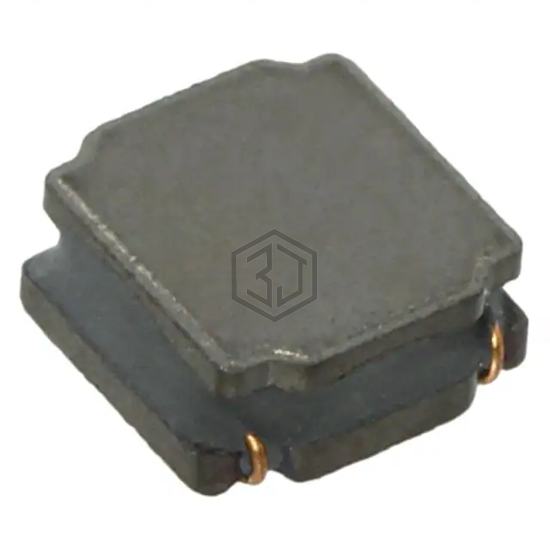

FIXED IND 2.2UH 2.6A 48 MOHM SMD
74405042022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 2.6A 48 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.6 A.
In Stock: 800
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.6 A |
| Current - Saturation (Isat) | 7.6A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 48mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 33MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.157" L x 0.146" W (4.00mm x 3.70mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for 74405042022 and get a quote within 24 hours.
