FIXED IND 6.8UH 1.1A 200MOHM SMD

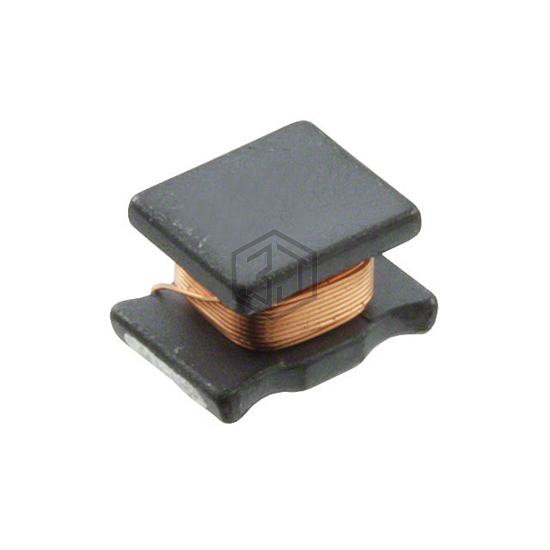

744045006 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 6.8UH 1.1A 200MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1812 (4532 Metric), current rating (amps) 1.1 A.
In Stock: 612
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.1 A |
| Current - Saturation (Isat) | 1.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 36 @ 1MHz |
| Frequency - Self Resonant | 37MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.114" (2.90mm) |
Submit your RFQ for 744045006 and get a quote within 24 hours.
