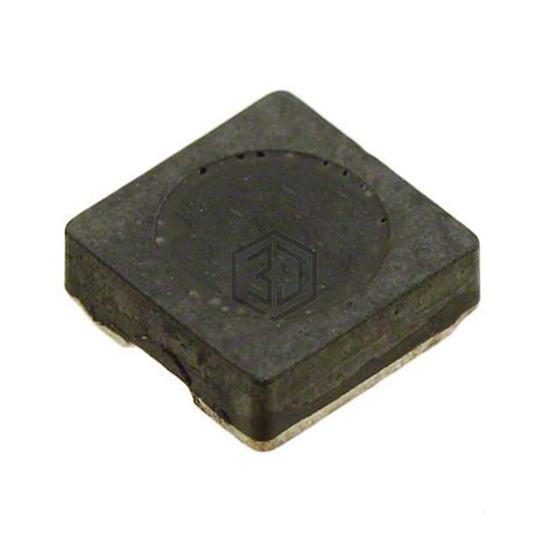

FIXED IND 12UH 1.15A 170MOHM SMD
744042120 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 12UH 1.15A 170MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1919 (4848 Metric), current rating (amps) 1.15 A.
In Stock: 1,605
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 12 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 1.15 A |
| Current - Saturation (Isat) | 950mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 40MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1919 (4848 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for 744042120 and get a quote within 24 hours.
