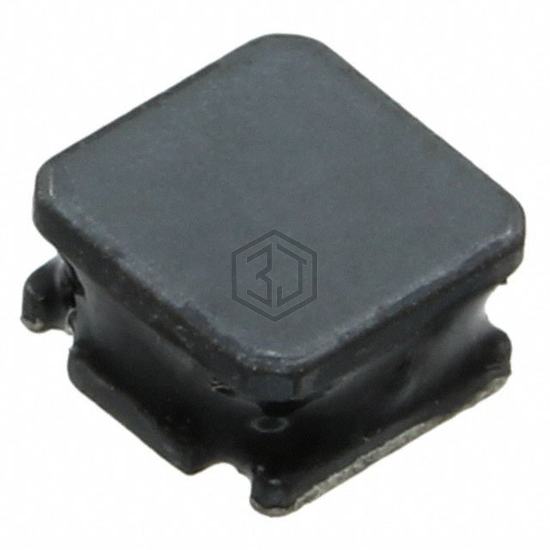

FIXED IND 2.2MH 310MA 5 OHM SMD
74404086222 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2MH 310MA 5 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 310 mA.
In Stock: 2,614
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 310 mA |
| Current - Saturation (Isat) | 450mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 5Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | 924kHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 8065 |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Submit your RFQ for 74404086222 and get a quote within 24 hours.
