FIXED IND 1MH 480MA 2.35 OHM SMD

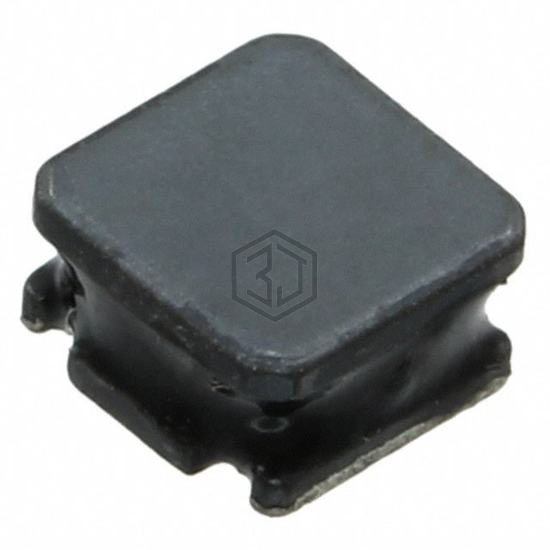

74404086102 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1MH 480MA 2.35 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 480 mA.
In Stock: 113
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating (Amps) | 480 mA |
| Current - Saturation (Isat) | 650mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 2.35Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.39MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 8065 |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
