FIXED IND 100UH 1.35A 238MOHM SM

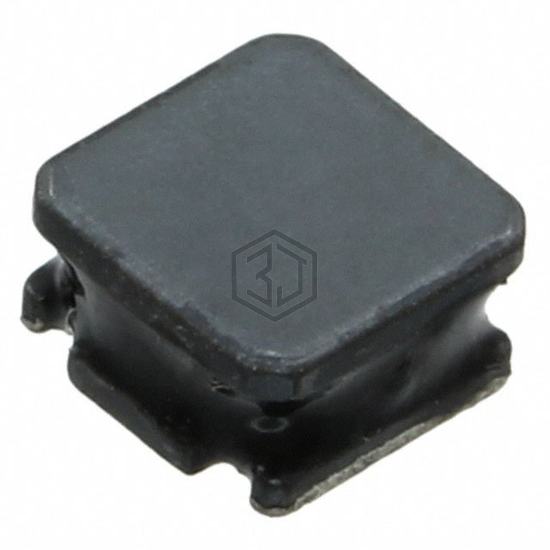

74404086101 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 100UH 1.35A 238MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.35 A.
In Stock: 10,161
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.35 A |
| Current - Saturation (Isat) | 2.15A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 238mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 4MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 8065 |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
Submit your RFQ for 74404086101 and get a quote within 24 hours.
