FIXED IND 120UH 790MA 520MOHM SM

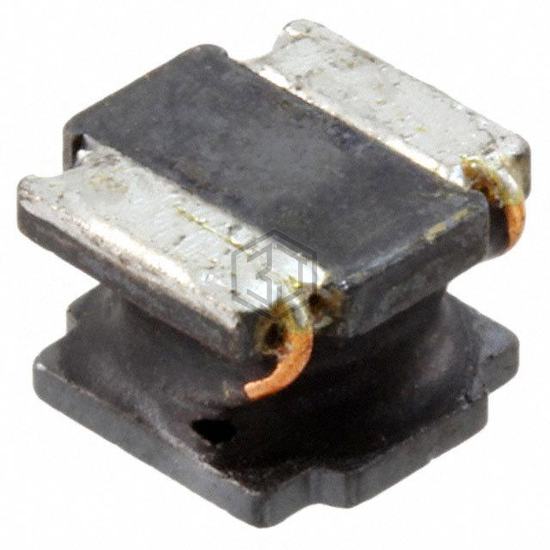

74404064121 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 120UH 790MA 520MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 790 mA.
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 120 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 790 mA |
| Current - Saturation (Isat) | 980mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 520mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 5.78MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 6045 |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
Submit your RFQ for 74404064121 and get a quote within 24 hours.
