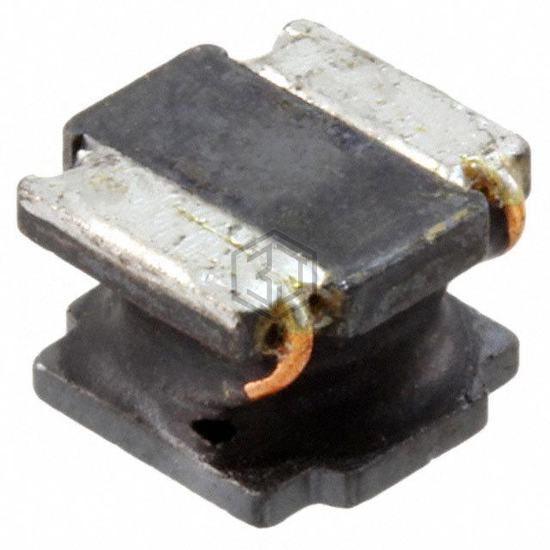

FIXED IND 2.2UH 4.6A 14 MOHM SMD
74404064022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 4.6A 14 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 4.6 A.
In Stock: 3,003
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.6 A |
| Current - Saturation (Isat) | 7.4A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 14mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 60MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 6045 |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
