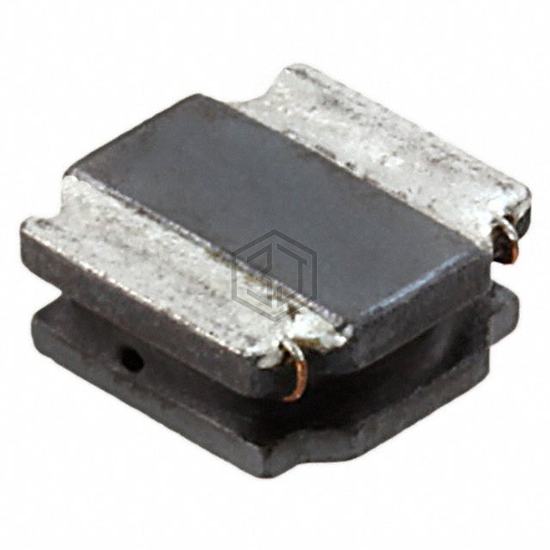

FIXED IND 2.2UH 3.75A 20MOHM SMD
74404063022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 3.75A 20MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.75 A.
In Stock: 5,403
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.75 A |
| Current - Saturation (Isat) | 5.6A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 20mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 69MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 6028 |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
Submit your RFQ for 74404063022 and get a quote within 24 hours.
