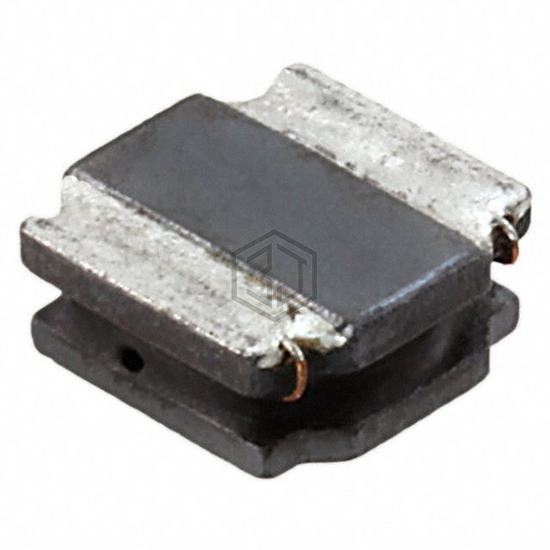

FIXED IND 820NH 6A 10 MOHM SMD
744040630082 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 820NH 6A 10 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6 A.
In Stock: 106
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 820 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 6 A |
| Current - Saturation (Isat) | 9.5A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 10mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 144MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 6028 |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
