FIXED IND 100UH 700MA 560MOHM SM

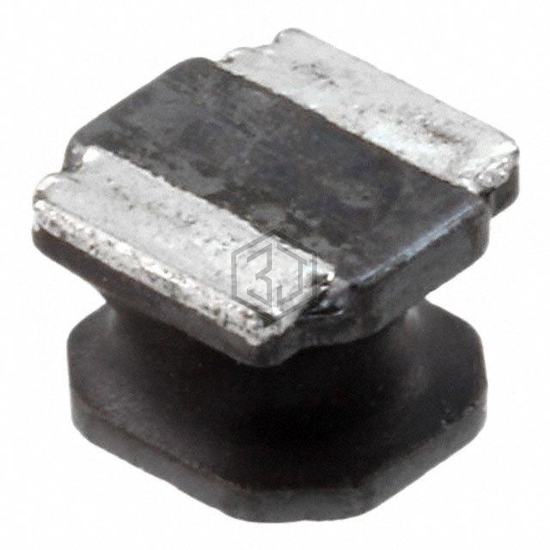

74404054101 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 100UH 700MA 560MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 700 mA.
In Stock: 778
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | 820mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 560mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 7.2MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 5040 |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for 74404054101 and get a quote within 24 hours.
