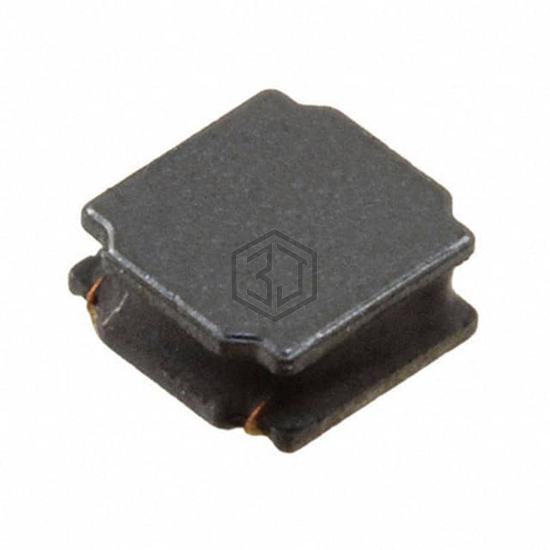

FIXED IND 68UH 540MA 840MOHM SMD
74404042680 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 68UH 540MA 840MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 540 mA.
In Stock: 22,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 540 mA |
| Current - Saturation (Isat) | 630mA |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 840mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 9MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for 74404042680 and get a quote within 24 hours.
