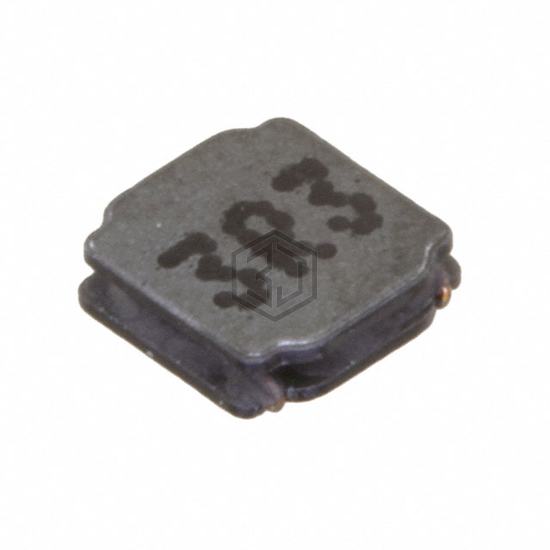

FIXED IND 3.3UH 1.75A 69MOHM SMD
74404041033 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 3.3UH 1.75A 69MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.75 A.
In Stock: 8,217
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.75 A |
| Current - Saturation (Isat) | 1.8A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 69mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 78MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for 74404041033 and get a quote within 24 hours.
