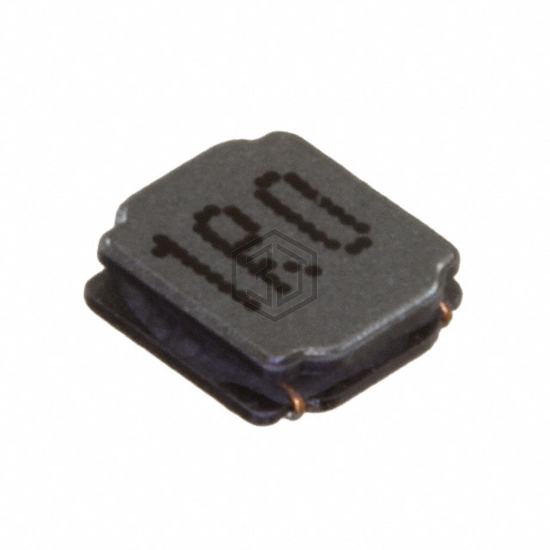

FIXED IND 1UH 2.52A 41 MOHM SMD
74404041010 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1UH 2.52A 41 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.52 A.
In Stock: 4,500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 2.52 A |
| Current - Saturation (Isat) | 3.35A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 41mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 142MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.146" W (4.00mm x 3.70mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for 74404041010 and get a quote within 24 hours.
