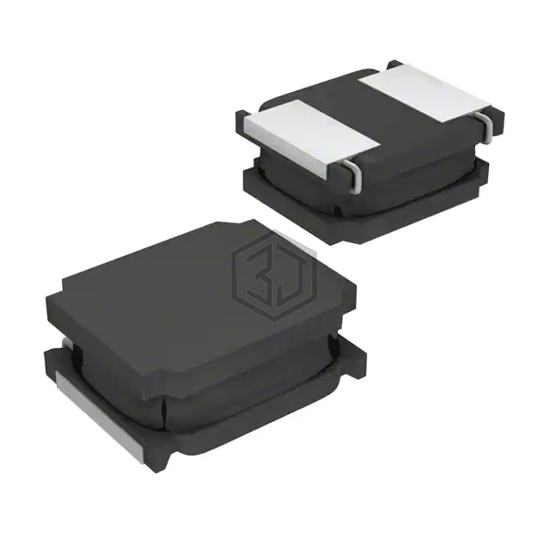

FIXED IND 1UH 2.2A 37 MOHM SMD
74404024010 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1UH 2.2A 37 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.2 A.
In Stock: 2,295
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.2 A |
| Current - Saturation (Isat) | 2.6A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 37mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 159MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 2520 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for 74404024010 and get a quote within 24 hours.
