FIXED IND 2.2UH 960MA 220MOHM SM

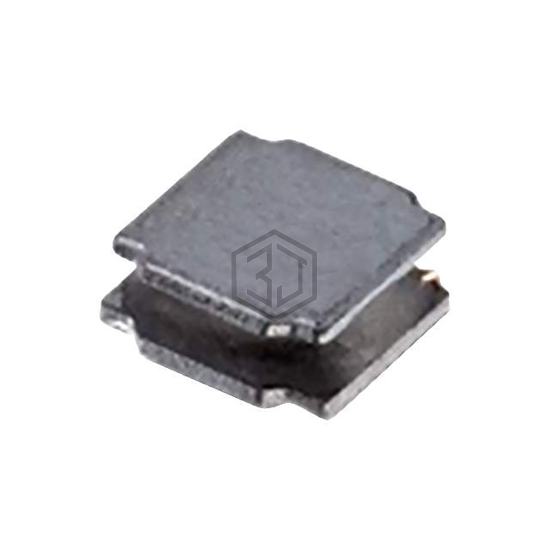

74404020022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 960MA 220MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 960 mA.
In Stock: 1,219
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 960 mA |
| Current - Saturation (Isat) | 1.4A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 220mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 107MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
