FIXED IND 2.7UH 600MA 180MOHM SM

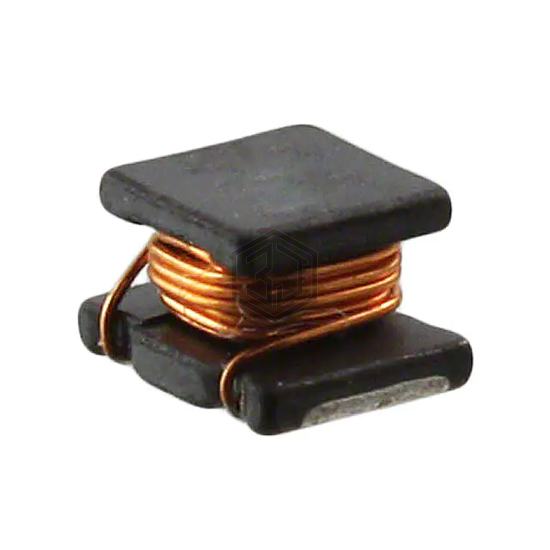

7440320027 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.7UH 600MA 180MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 1210 (3225 Metric), current rating (amps) 600 mA.
In Stock: 1,622
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | 1.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 180mOhm Max |
| Q @ Freq | 20 @ 1MHz |
| Frequency - Self Resonant | 43MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.091" (2.30mm) |
Submit your RFQ for 7440320027 and get a quote within 24 hours.
