FIXED IND 6.8UH 850MA 156MOHM SM

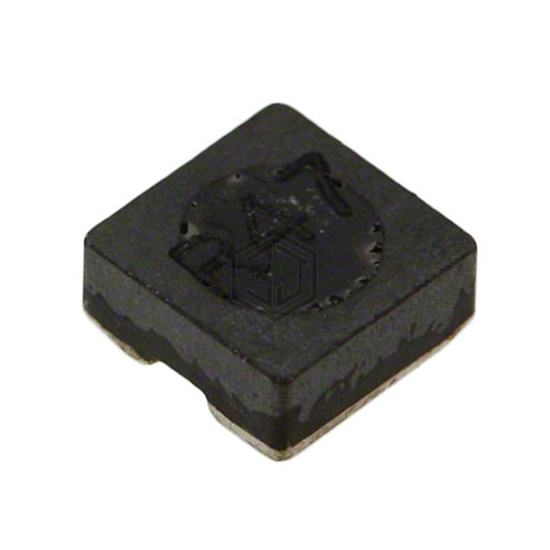

744031006 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 6.8UH 850MA 156MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 850 mA.
In Stock: 7,044
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 850 mA |
| Current - Saturation (Isat) | 750mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 156mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 45MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 3816 |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for 744031006 and get a quote within 24 hours.
