FIXED IND 4.7UH 480MA 290MOHM SM

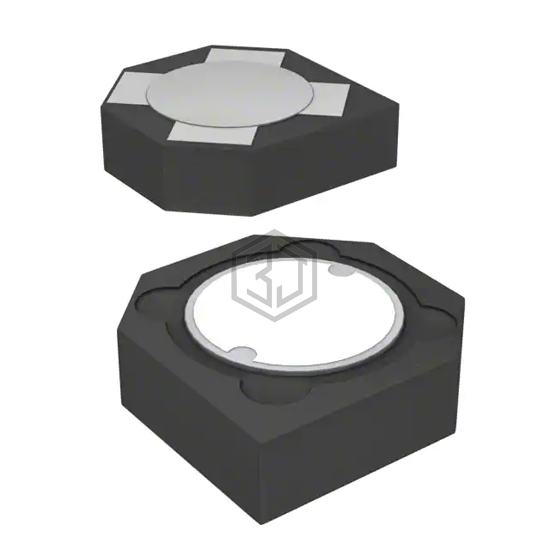

744030004 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 4.7UH 480MA 290MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 480 mA.
In Stock: 265
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 480 mA |
| Current - Saturation (Isat) | 500mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 290mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 100MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
Submit your RFQ for 744030004 and get a quote within 24 hours.
