FIXED IND 10UH 650MA 470MOHM SMD

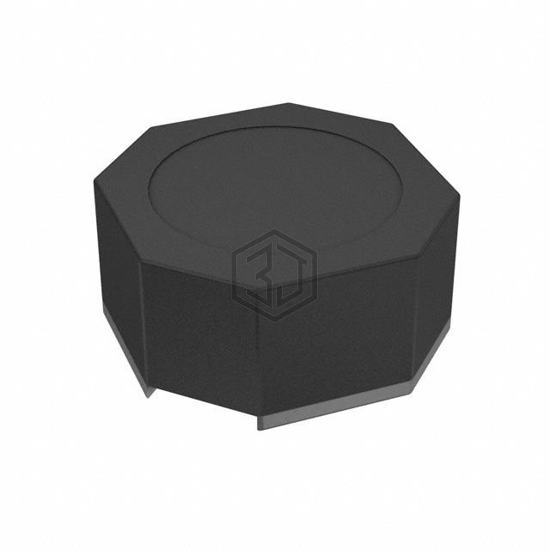

744029100 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 10UH 650MA 470MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 650 mA.
In Stock: 17,841
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 650 mA |
| Current - Saturation (Isat) | 500mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 470mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 40MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 2828 |
| Size / Dimension | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for 744029100 and get a quote within 24 hours.
