FIXED IND 160NH 3.8A 21 MOHM SMD

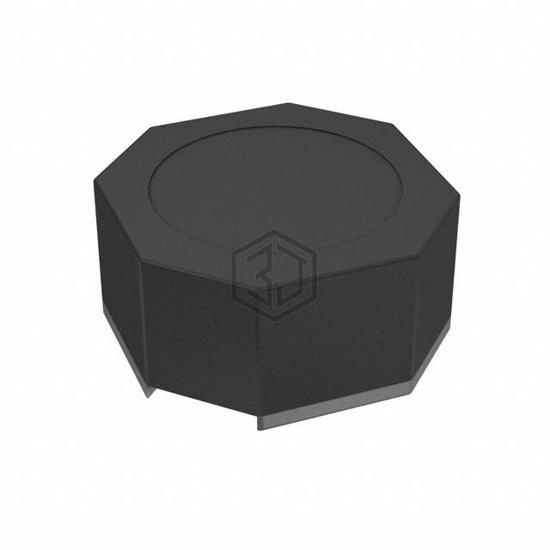

74402900016 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 160NH 3.8A 21 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.8 A.
In Stock: 2,462
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 160 nH |
| Tolerance | ±35% |
| Current Rating (Amps) | 3.8 A |
| Current - Saturation (Isat) | 3.9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 21mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 800MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 2828 |
| Size / Dimension | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Submit your RFQ for 74402900016 and get a quote within 24 hours.
