FIXED IND 470NH 3.3A 23 MOHM SMD

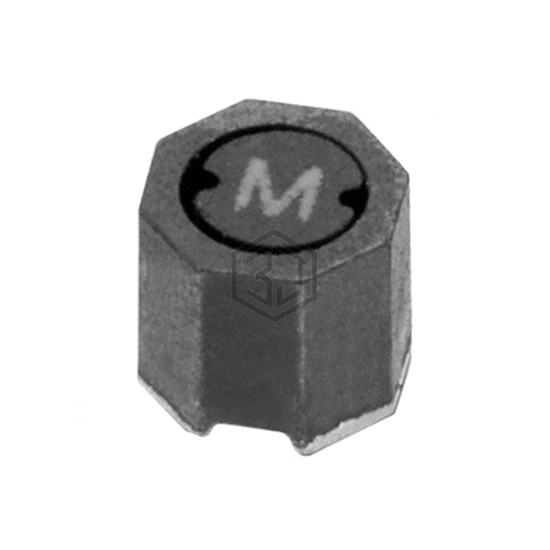

74402500047 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 470NH 3.3A 23 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 3.3 A.
In Stock: 1,982
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 470 nH |
| Tolerance | ±25% |
| Current Rating (Amps) | 3.3 A |
| Current - Saturation (Isat) | 4.7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 23mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 290MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 2828 |
| Size / Dimension | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Submit your RFQ for 74402500047 and get a quote within 24 hours.
