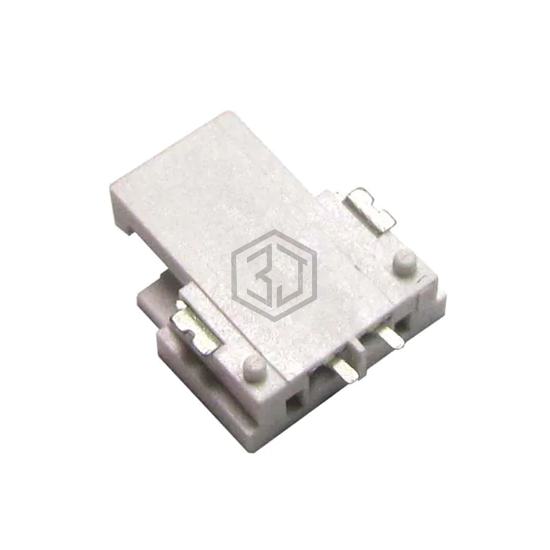

CONN RCPT 4POS 0.059 TIN SMD R/A
695404151122 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Würth Elektronik. CONN RCPT 4POS 0.059 TIN SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -25°C ~ 85°C, voltage rating 150VAC, current rating (amps) 1A.
In Stock: 1,100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Blade Socket |
| Style | Board to Board |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
| Insulation Color | White |
| Insulation Height | 0.096" (2.44mm) |
| Contact Length - Post | - |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide, Solder Retention |
| Current Rating (Amps) | 1A |
| Voltage Rating | 150VAC |
Submit your RFQ for 695404151122 and get a quote within 24 hours.
