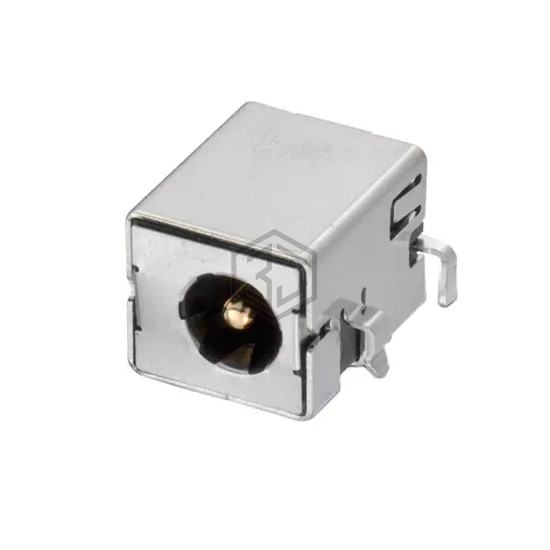

CONN PWR JACK 1.75X4.75MM SOLDER
694105309102 is a Barrel - Power Connectors manufactured by Würth Elektronik. CONN PWR JACK 1.75X4.75MM SOLDER. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 20VDC, current rating (amps) 5.5 A, termination Solder.
In Stock: 5,498
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.75mm ID (0.068"), 4.75mm OD (0.187") |
| Actual Diameter | 0.065" (1.65mm ID), 0.194" (4.93mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Shielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | 20VDC |
| Current Rating (Amps) | 5.5 A |
| Mating Length/Depth | 0.335" (8.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 694105309102 and get a quote within 24 hours.
