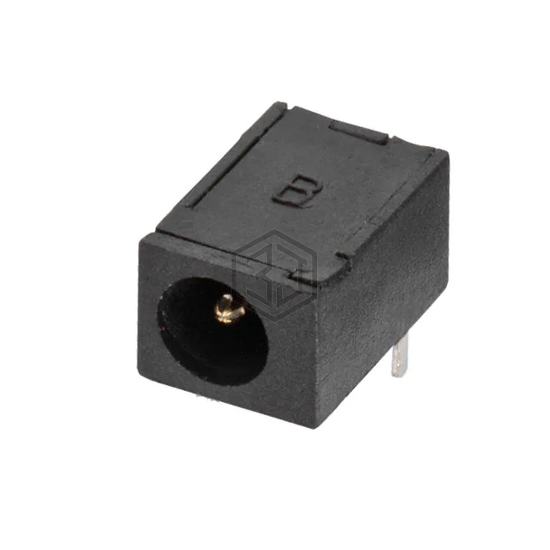

CONN PWR JACK 1.35X3.5MM SOLDER
694103304002 is a Barrel - Power Connectors manufactured by Würth Elektronik. CONN PWR JACK 1.35X3.5MM SOLDER. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 20VDC, current rating (amps) 2 A, termination Solder.
In Stock: 320
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.35mm ID (0.053"), 3.50mm OD (0.138") |
| Actual Diameter | 0.053" (1.35mm ID), 0.150" (3.80mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 20VDC |
| Current Rating (Amps) | 2 A |
| Mating Length/Depth | 0.354" (9.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 694103304002 and get a quote within 24 hours.
