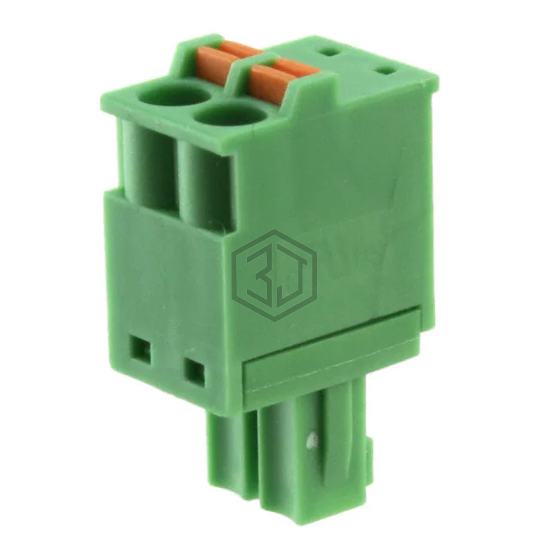

TERM BLOCK PLUG 2POS STR 3.81MM
691368300002B is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Würth Elektronik. TERM BLOCK PLUG 2POS STR 3.81MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 115°C, color Green, Orange, termination style Screwless - Leg Spring, Push-In Spring.
In Stock: 154
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Number of Levels | 1 |
| Pitch | 0.150" (3.81mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 8 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 16-28 AWG |
| Wire Gauge or Range - mm² | 0.08-1.3mm² |
| Color | Green, Orange |
| Operating Temperature | -40°C ~ 115°C |
| Contact Mating Finish | - |
| Features | - |
Submit your RFQ for 691368300002B and get a quote within 24 hours.
