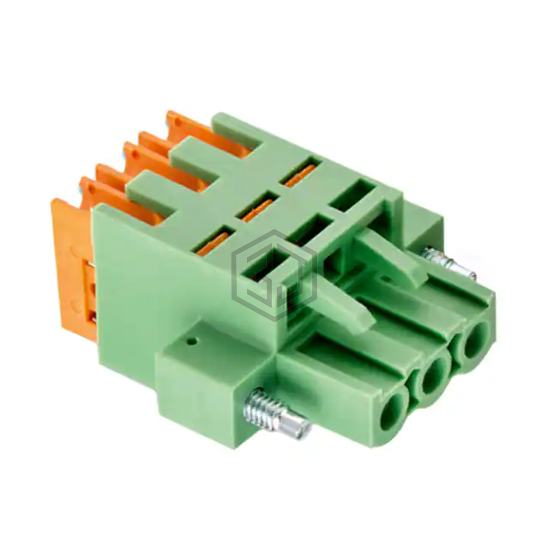

TERM BLOCK PLUG 3POS 5.08MM
691359740003 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Würth Elektronik. TERM BLOCK PLUG 3POS 5.08MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 115°C, color Green, termination style IDC.
In Stock: 80
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 3 |
| Positions Per Level | 3 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | IDC |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 7 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 18-22 AWG |
| Wire Gauge or Range - mm² | 0.3-0.8mm² |
| Color | Green |
| Operating Temperature | -40°C ~ 115°C |
| Contact Mating Finish | Tin |
| Features | Mating Flange, Retention Latches (Non-Wire Side) |
Submit your RFQ for 691359740003 and get a quote within 24 hours.
