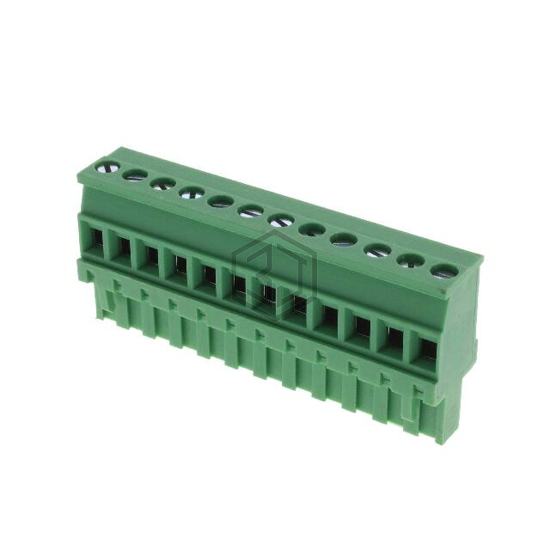

TERM BLOCK PLUG 12POS 5MM
691351700012 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Würth Elektronik. TERM BLOCK PLUG 12POS 5MM. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, color Green, termination style Screw - Leaf Spring, Wire Guard.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 12 |
| Positions Per Level | 12 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-24 AWG |
| Wire Gauge or Range - mm² | 0.21-3.31mm² |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | - |
| Features | Retention Latches (Wire Side) |
Submit your RFQ for 691351700012 and get a quote within 24 hours.
