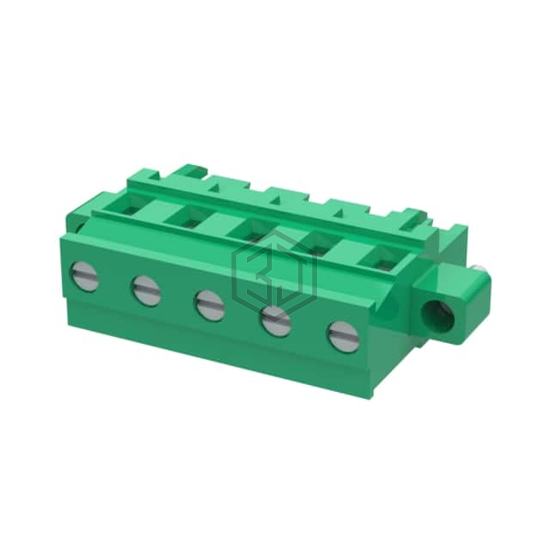

7.62 MM TERMINAL BLOCK PLUG, HOR
691343410005 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Würth Elektronik. 7.62 MM TERMINAL BLOCK PLUG, HOR. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, color Green, termination style Screw - Leaf Spring, Wire Guard.
In Stock: 120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 5 |
| Positions Per Level | 5 |
| Number of Levels | 1 |
| Pitch | 0.300" (7.62mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-24 AWG |
| Wire Gauge or Range - mm² | 0.21-3.31mm² |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | - |
| Features | Mating Flange, Retention Latches (Wire Side) |
Submit your RFQ for 691343410005 and get a quote within 24 hours.
