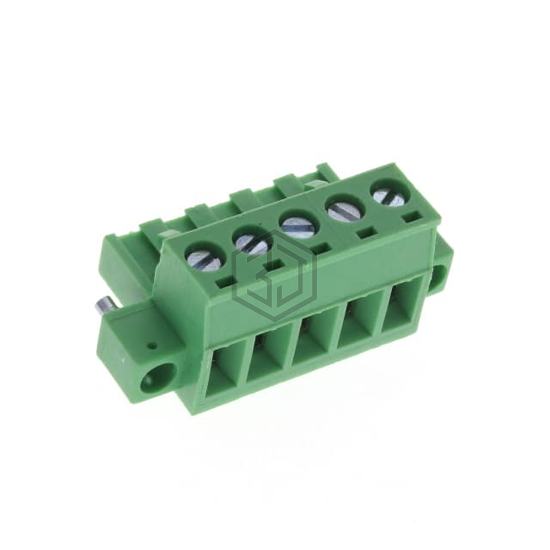

5.08 MM TERMINAL BLOCK PLUG, VER
691340500005 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Würth Elektronik. 5.08 MM TERMINAL BLOCK PLUG, VER. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, color Green, termination style Screw - Leaf Spring, Wire Guard.
In Stock: 176
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 5 |
| Positions Per Level | 5 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 20 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-24 AWG |
| Wire Gauge or Range - mm² | 0.21-3.31mm² |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | - |
| Features | Mating Flange, Retention Latches (Non-Wire Side) |
Submit your RFQ for 691340500005 and get a quote within 24 hours.
