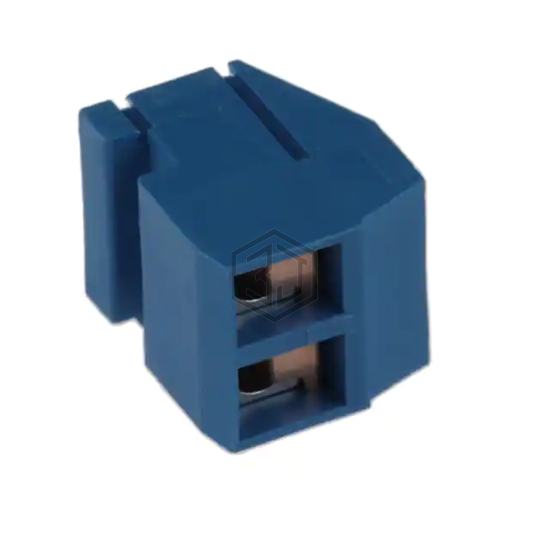

5.00 MM TERMINAL BLOCK, HORIZONT
691301710002 is a Terminal Blocks - Headers, Plugs and Sockets manufactured by Würth Elektronik. 5.00 MM TERMINAL BLOCK, HORIZONT. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, color Blue, termination style Screw - Leaf Spring, Wire Guard.
In Stock: 608
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug for Unshrouded Header |
| Number of Positions | 2 |
| Positions Per Level | 2 |
| Number of Levels | 1 |
| Pitch | 0.197" (5.00mm) |
| Header Orientation | - |
| Plug Wire Entry | 90° |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 14-22 AWG |
| Wire Gauge or Range - mm² | 0.33-2.08mm² |
| Color | Blue |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | - |
| Features | - |
Submit your RFQ for 691301710002 and get a quote within 24 hours.
