WR-MM FEMALE ANGLED CONNECTOR WI

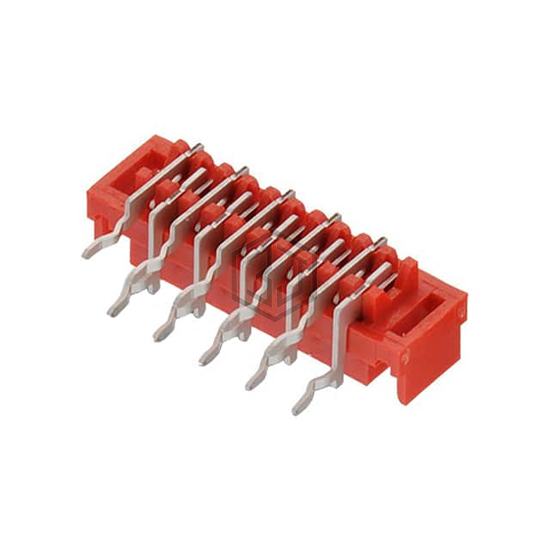

690368190872 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Würth Elektronik. WR-MM FEMALE ANGLED CONNECTOR WI. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 105°C, voltage rating 100VAC, current rating (amps) 1.5A per Contact.
In Stock: 197
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Forked |
| Style | Board to Board or Cable |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.059" (1.50mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Kinked Pin, Solder |
| Fastening Type | Latch Lock |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Red |
| Insulation Height | 0.228" (5.80mm) |
| Contact Length - Post | 0.122" (3.10mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1.5A per Contact |
| Voltage Rating | 100VAC |
Submit your RFQ for 690368190872 and get a quote within 24 hours.
