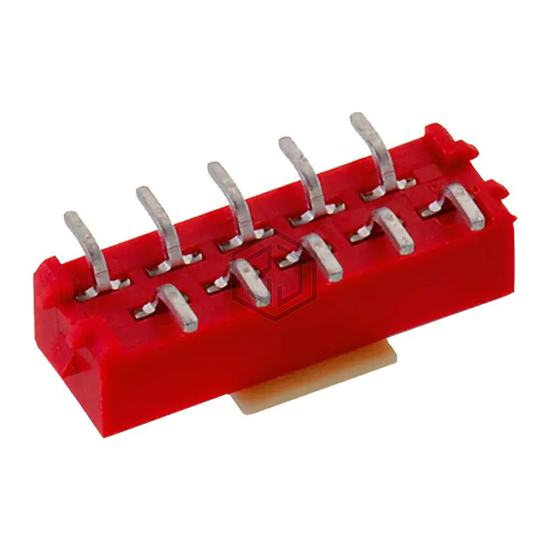

WR-MM MALE SMT CONNECTOR
690357281676 is a Rectangular Connectors - Headers, Male Pins manufactured by Würth Elektronik. WR-MM MALE SMT CONNECTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating 100VAC, contact material Phosphor Bronze.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.059" (1.50mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.142" (3.60mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | Pick and Place |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Red |
| Current Rating (Amps) | 1.5A per Contact |
| Voltage Rating | 100VAC |
Submit your RFQ for 690357281676 and get a quote within 24 hours.
