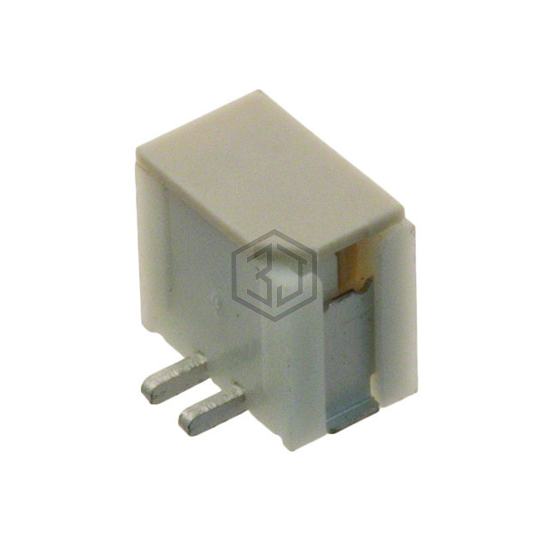

CONN HEADER SMD 2POS 1.5MM
679302124022 is a Rectangular Connectors - Headers, Male Pins manufactured by Würth Elektronik. CONN HEADER SMD 2POS 1.5MM. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage rating 50V, contact material Copper Alloy.
In Stock: 765
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.059" (1.50mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.197" (5.00mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | Pick and Place, Solder Retention |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Ivory |
| Current Rating (Amps) | 1A |
| Voltage Rating | 50V |
Submit your RFQ for 679302124022 and get a quote within 24 hours.
