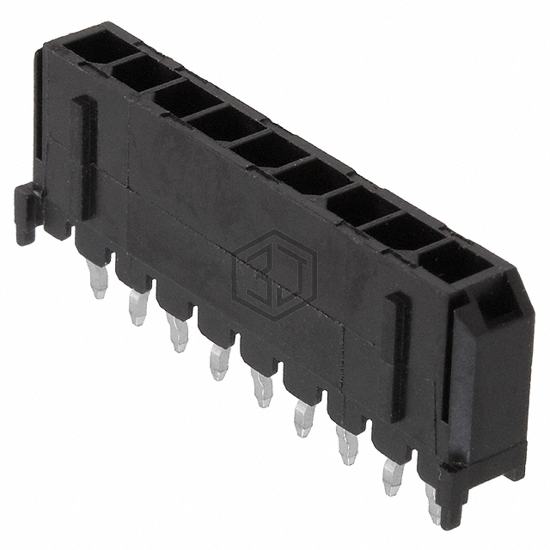

CONN HEADER VERT 9POS 3MM
66200911122 is a Rectangular Connectors - Headers, Male Pins manufactured by Würth Elektronik. CONN HEADER VERT 9POS 3MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating 250V, contact material Copper Alloy.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.118" (3.00mm) |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.125" (3.18mm) |
| Overall Contact Length | - |
| Insulation Height | 0.390" (9.91mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 5A |
| Voltage Rating | 250V |
Submit your RFQ for 66200911122 and get a quote within 24 hours.
