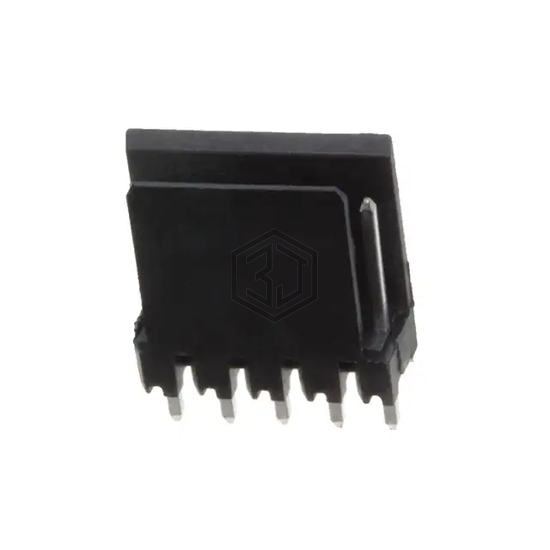

CONN HEADER VERT 5POS 2.54MM
66100511622 is a Rectangular Connectors - Headers, Male Pins manufactured by Würth Elektronik. CONN HEADER VERT 5POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage rating 50VAC, contact material Phosphor Bronze.
In Stock: 966
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.276" (7.00mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | 0.496" (12.60mm) |
| Insulation Height | 0.445" (11.30mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 50VAC |
Submit your RFQ for 66100511622 and get a quote within 24 hours.
